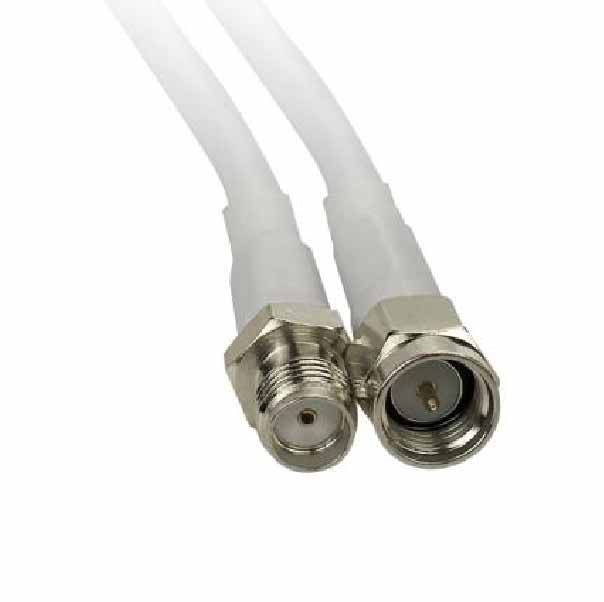

5 Meter Cable

This 5-meter cable is a high-performance solution for RF and microwave signal transmission, meticulously designed to meet the demands of various communication and electronic systems. It is made with precision and quality materials to ensure optimal performance, reliability, and durability.

Electrical and Mechanical Properties

• Characteristic Impedance: The cable has a characteristic impedance of 50 ohms. It is suitable for a wide range of RF applications. It provides minimal signal loss and consistent performance.
• Rated Capacitance: With a capacitance of 82 pf/m, the cable supports stable signal transmission over long distances without significant degradation.
• Velocity of Propagation: The cable features an 84% velocity of propagation, indicating its efficiency in transmitting signals at high speeds.
• Operating Frequency: It supports a wide operating frequency range of 1 to 6000 MHz. It is versatile for various applications, including radio, television, and wireless communications.
• VSWR: The cable maintains a low Voltage Standing Wave Ratio (VSWR) of ≤1.15 up to 3000 MHz and ≤1.20 up to 6000 MHz, ensuring efficient signal transmission with minimal reflection and interference.
• Operating Temperature: Built to withstand harsh environments, the cable operates effectively within a temperature range of -25°C to +70°C.
• Minimum Bending Radius: The cable is flexible with a minimum bending radius of 61mm. Hence, it is easy to install in tight spaces without compromising performance.

Cable Construction

• Inner Conductor: The high-quality Bare Copper (BC) or Copper Clad Aluminum (CCA) inner conductor is a great feature. With a diameter of 1.42mm, ensures excellent conductivity and signal integrity.
• Insulation Layer: The cable features a Foam Polyethylene (FPE) insulation layer with a diameter of 3.81mm, providing excellent dielectric properties and reducing signal loss.
• Outer Conductor: It includes a single-sided self-adhesive aluminum tape with tinned copper, with a diameter of 4.52mm, offering strong shielding against electromagnetic interference (EMI) and radio frequency interference (RFI).
• Jacket: The outer jacket is made from durable Polyvinyl Chloride (PVC) or Polyethylene (PE), with a diameter of 6.10mm. It provides robust protection against physical damage, moisture, and environmental factors.

RG58 Cable Construction

• Conductor: The RG58 cable features a 7-strand 0.16mm Bare Copper or Copper Clad Steel (CCS) conductor, with a nominal diameter of 0.48mm, ensuring flexibility and durability.
• Dielectric: The Polyethylene (PE) dielectric material with a nominal diameter of 1.60mm, provides consistent performance across its frequency range.
• Shield: The shield consists of tinned copper braiding with 90% coverage, ensuring excellent protection against external interference.
• Jacket: The PVC jacket with a thickness of 0.5mm and a diameter of 2.7±0.10mm, offers durability and ease of handling.

This 5-meter cable is ideal for applications requiring high reliability, such as mobile signal boosters, wireless communication systems, and various RF installations. Its robust construction and superior electrical properties make it an excellent choice for both indoor and outdoor use, ensuring long-term performance and signal integrity.
